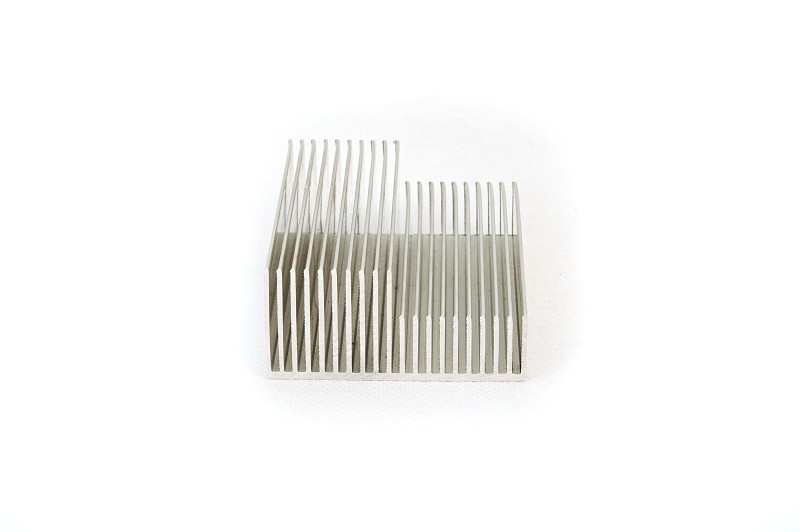

Industrial Radiator

Name: Industrial Radiator
Brand: Shengfa
SKU: 197887878

Send Inquiry

Description

1.Raw material: 6063 aluminum alloy

2.Color: black/silver/custom

3.Length：according to customer needs

3.Cargo packaging：non-woven fabric / kraft paper / film

4.Payment terms: TT or L/C

5.Delivery terms: Negotiable

Aluminum Heat Sinks

Aluminum radiator, as the name suggests, is a radiator made of aluminum material, usually the surface of the processed aluminum radiator is anodized to increase the corrosion resistance and wear resistance of aluminum, as well as the aesthetics of the appearance. At present, the aluminum radiators commonly used in China mainly include computer radiators, electronic radiators, electrical radiators and so on.

Common Classification And Picture Display Of Radiators

Electronic radiators, helical radiators, high power tooth radiators, sector radiators, resistive radiators and LED street lamp module radiators, sunflower radiator,etc

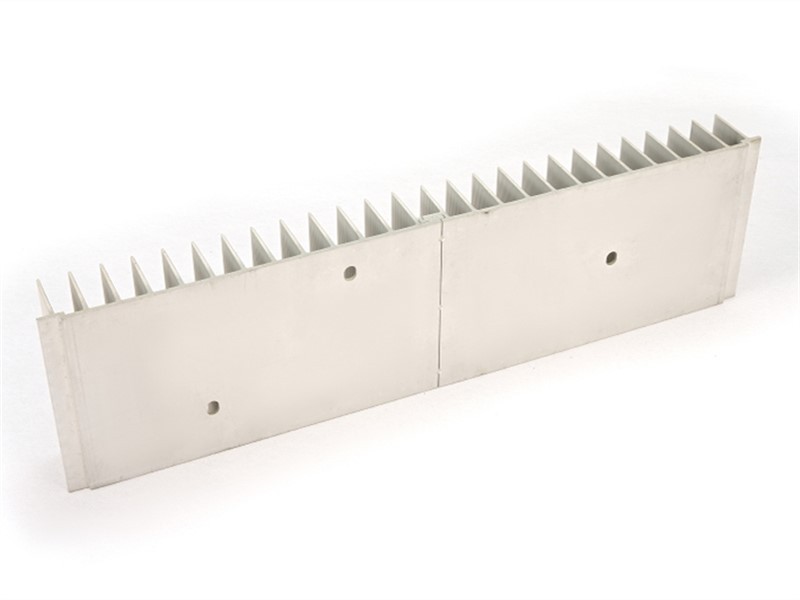

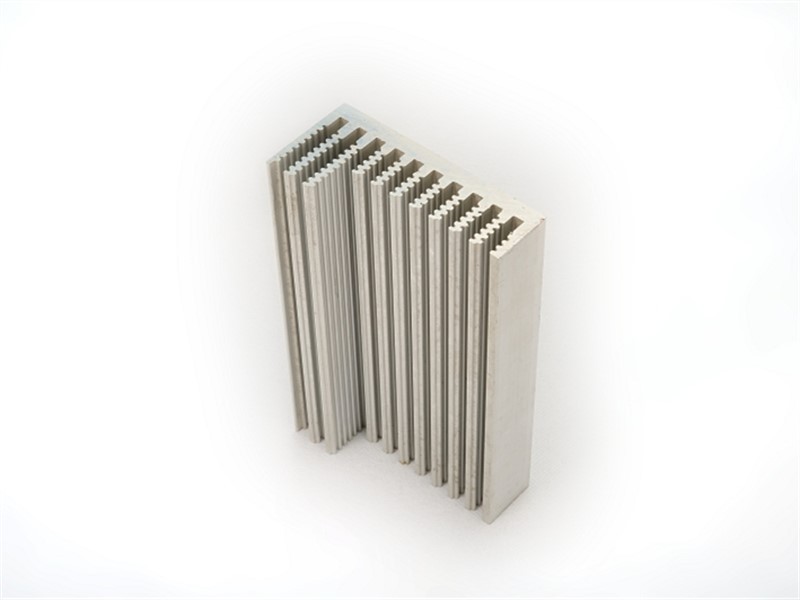

Electronic Radiators	Helical Radiators	High Power Tooth Radiators

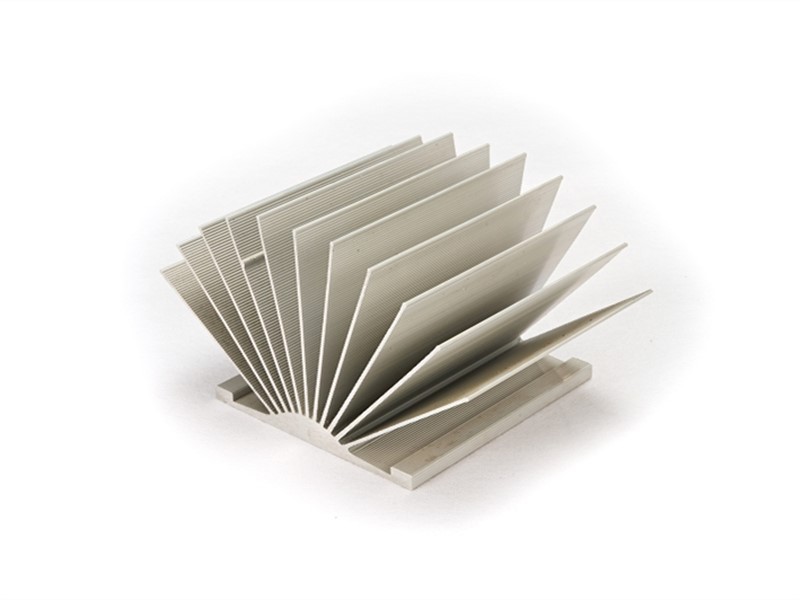

Sector Radiators	Resistive Radiators	LED Street Lamp Module Radiators

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others	Al(Min)
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	rest

Mechanical Properties

Alloy	Temper	Thickness	T.S./σb (MPa)	Y.S/σ0.2 (MPa)	ELOG./δ%	Hardness/HW
6063	T5	≥ 0.8	≥160	≥110	≥8	≥8
6063	T6	≥ 0.8	≥205	≥180	≥8	≥10

Picture Of The Packaging Method

Advantages Of Aluminum Radiator

(1) Aluminum profile radiator has good heat dissipation, energy-saving characteristics are very obvious.

(2) The oxidation corrosion resistance of aluminum profile radiator is good, without adding any additives, the principle is that once aluminum encounters oxygen in the air, it will form a layer of oxide film, which is both tough and dense, preventing further corrosion of the body material.

Company Overview

Suzhou Shengfa Aluminum Co., Ltd. is a professional manufacturer of high-power electronic device radiators and various aluminum profiles integrating R&D, design, production and sales. Specializing in the production of various radiators, plug-in radiators, die-cast radiators and assembly lines, electronic components and other aluminum profiles. At present, our products have been widely used in solar photovoltaic inverters, smart grids, electric vehicle chargers, railway locomotives, light rail, subways, aerospace, frequency conversion power supply, inverter power supply, high-power module power supply, switching power supply, home appliances, medical equipment, welding and high-power communication, LED, military and other power electronics and new energy fields

Our Advantage

1.Factory direct sales cost-effective

Adopt factory direct sales mode, the engineering cost of the same grade product will save you more than 30%, own production plant, directly face the end customer customization

2.Featured design Exclusive solutions

All products can be customized in color/size/style to meet your individual needs, and the solution is designed according to the environment in which the product is used.

3.Short production lead time and fast delivery

Imported precision processing equipment is selected to ensure high quality, fast delivery, factory direct distribution, professional logistics team to serve you.

4.Imported CNC machining equipment

Imported CNC processing equipment, high precision, small tolerance, accept customization, strong production capacity, fast delivery speed
